Colours and protective coatings

Colour and protective coatings

HELLING offers different colours and coatings available, e.g. for

Protection from rust
Protection from high temperatures
Shading or tinting

Protective coatings

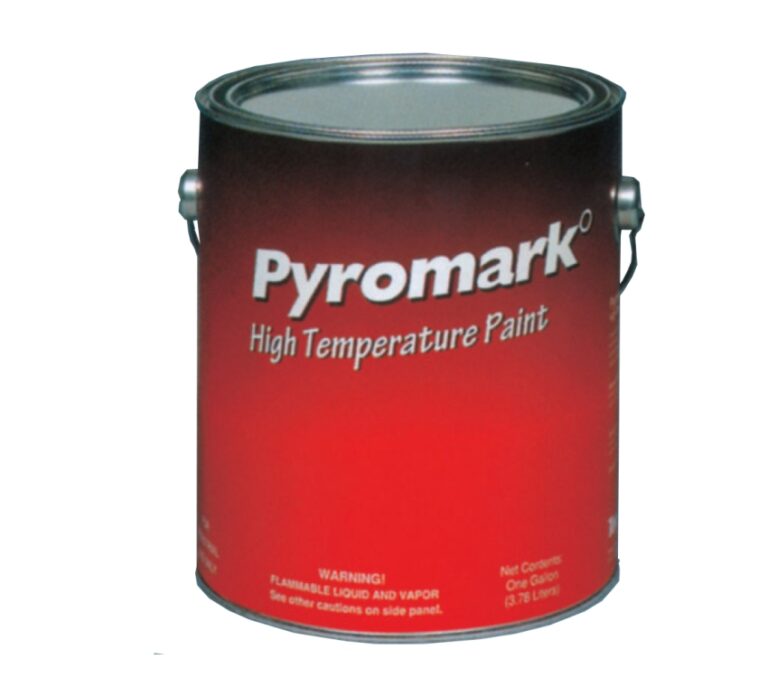

Pyromark | High temperature paint

Silicone-based protective coating for high temperatures for

Protection against oxidation and corrosion
Colour coding
Decoration
Temperature resistance 538 °C

Pyromark is characterised by excellent cover capability
No bubbling, cracking, spalling or peeling at nominal temperature
Silicone-based coatings for long-lasting protection against oxidation and corrosion
High emissivity (optimised heat transfer, e.g. in infrared heating systems to improve the heat transfer).
Solar absorption coefficient 0.95 (well suited for coating solar generators)

Series	Colour	Maximum temperature
1200	black (matt)	538 °C / 1,000 °F
2500	black (matt)	1093 °C / 2,000 °F

Packaging:

Pyromark 1200 container - 3.8 L

⋅

Pyromark 2500 container - 3.8 L

Item number :518.000.000

Max:

Min: 1

Step: 1

Put on inquiry list

Safety data sheets

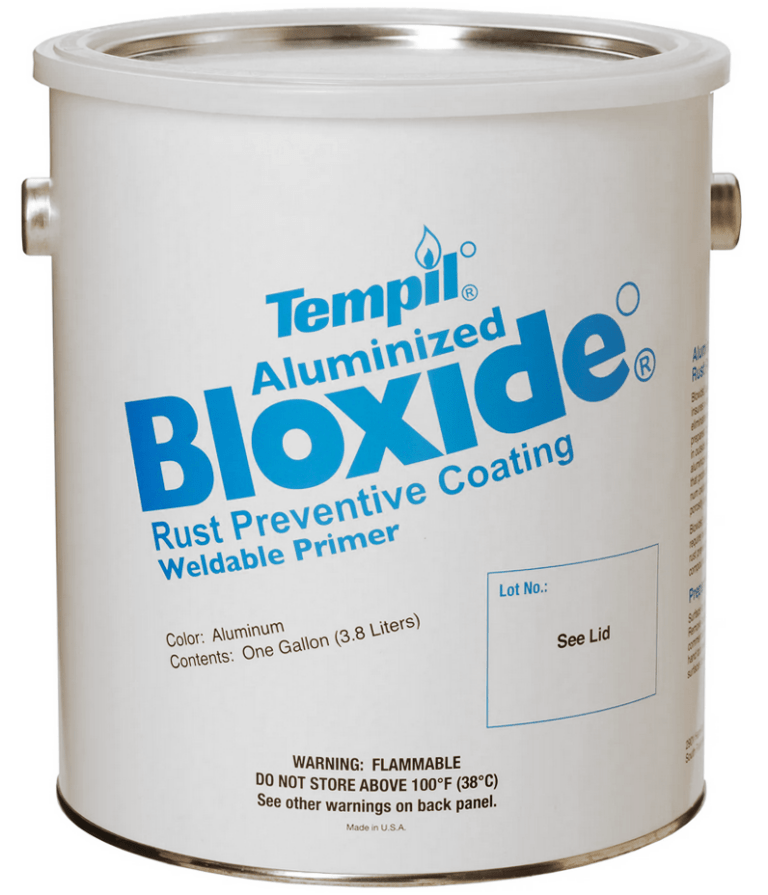

Bloxide | Weldable rust protection

Weldable anti-corrosion coating for Protection of steel surfaces from the use of heat-applying joining techniques

Protects the weld pool
Does not leave residues or slags
Improves the welding quality
Forms surface with aluminum effect
Temperature resistant up to 800 °F / 427 °C
Drying time approx. 6 hours at 25 °C

Effective on all steels, including

High strength steels
Carbon-molybdenum steels
Chromium-molybdenum steels

Free from

Lead
Sulfur
Tin
Cadmium
Mercury
Chlorine
and other halogens

Packaging:

Aerosol can - 350 mL

⋅

Container - 3.8 L

Item number :519.000.010

Max:

Min: 1

Step: 1

Put on inquiry list

Anti-Heat | Temperature protection

Spreadable thermal protection paste for all metals

Absorbs surface heat generated during welding, brazing or soldering
No buckling, bulging or other deformation of thin metal parts
Forms release layer that prevents discoloration, bubbles and cracks
Adheres to horizontal and vertical surfaces and also for overhead application
Cartridge fits into any commercially available application pistol
Excess material can be easily wiped off with water

Non toxic
Harmless for the skin
Odourless
Free from asbestos

Version:

3.8 L container

Item number :519.090.002

Max:

Min: 1

Step: 1

Put on inquiry list

Anti-slip | Granules and accelerator

Mix anti-slip granules only with enclosed catalyst (accelerator)
Application on dry, dust-free and degreased substrate
Stir well and then add the catalyst
Stir well again 5 min.
Use within 1 hour
Application temperature >15°C

Version:

Anti-slip granules fine/natural

⋅

Anti-slip granules rough/natural

⋅

Anti-slip granules rough/natural, 5 kg

⋅

Anti-slip granules medium/natural

Item number :705.000.230

Max:

Min: 1

Step: 1

Put on inquiry list

Safety Data Sheet Container

Open

Download

Shading and tinting colours


	DYKEM Cross Check DYKEM Cross Check is a highly visible, fluorescent, fast drying indicator paste for tamper-proof torque marking. Applicable to metallic and other surfaces. Colours: blue and yellow Other colours upon request Scope of delivery PU: 24 tubes à 28.3 g Version: Blue ⋅ Yellow	Item number :810.083.318 Max: Min: 1 Step: 1 Put on inquiry list
	DYKEM Hi-Spot blue Hi-Spot is an intensely blue, soft paste to show high spots on bearings and contact surfaces. The paste spreads easily and evenly and serves as a highly effective contrast agent for checking machined (metallic) surfaces, e.g. during scraping. The blue film remains pliable and transferable for months and never dries out. Hi-Spot has excellent adhesion to metal and other surfaces. Contains no reportable amounts of xylene. Scope of delivery PU: 36 tubes à 0.55 oz (16.5 g)	Item number :810.083.307 Max: Min: 1 Step: 1 Put on inquiry list

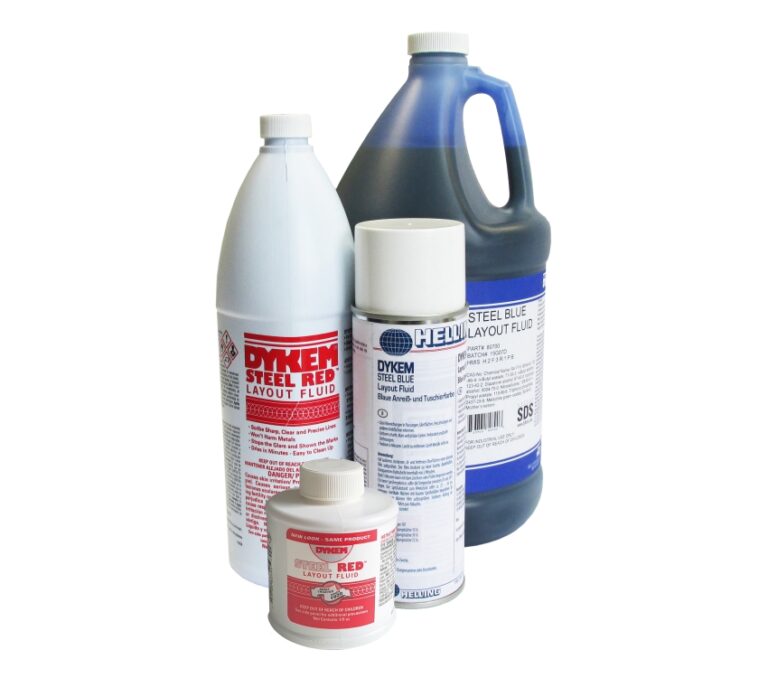

	Dykem Steel Red \| Marking and spotting ink High quality spotting ink Not soluble in oil or water Very durable Fields of application are e.g. Aircraft and mechanical engineering Shipbuilding Repair stores (monitoring of running properties) Documentation of gearbox settings Use as marking ink Reflective agent for bright or bare component surfaces Packaging: Aerosol can - 400 mL ⋅ Bottle - 930 mL	Item number :810.040.007 Max: Min: 1 Step: 1 Put on inquiry list Safety Data Sheet Container Open Download
	Dykem Steel Blue \| Marking and spotting ink High quality spotting ink Not soluble in oil or water Very durable Fields of application are e.g. Aircraft and mechanical engineering Shipbuilding Repair stores (monitoring of running properties) Documentation of gearbox settings Use as marking ink Reflective agent for bright or bare component surfaces Packaging: Aerosol can - 400 mL ⋅ Bottle - 930 mL ⋅ Container - 3.8 L	Item number :810.080.600 Max: Min: 1 Step: 1 Put on inquiry list Safety Data Sheet Container Open Download

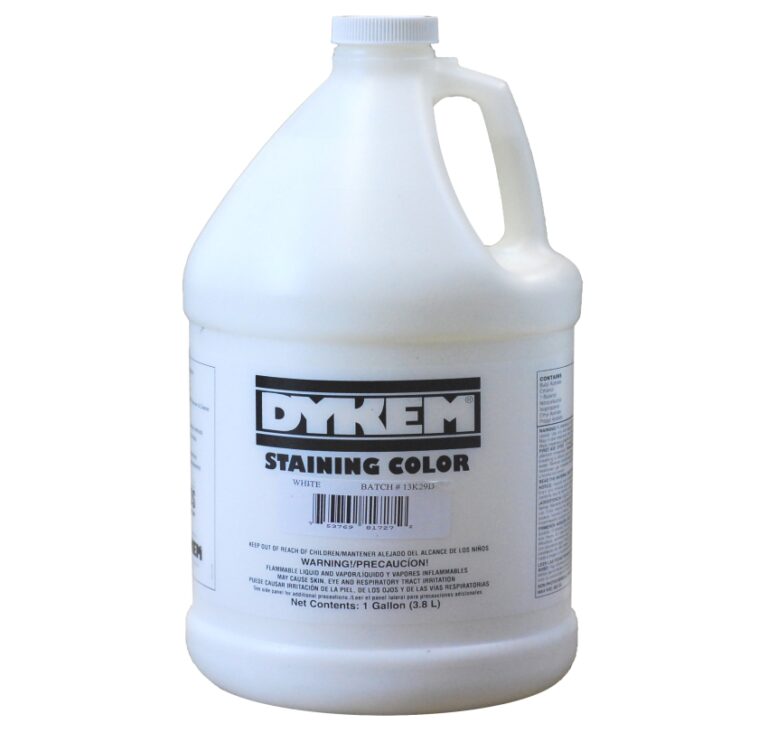

	Dykem Staining Color \| Tinting Color Fast drying, strong tinting color Adheres without flaking, cracking or crusting After drying gives a hard layer Harmless for metals Lead-free Oil and moisture resistant Resistant to gear oil up to 150 °C Easy removal with Reiniger Nr. 107 Packaging: Bottle - 3.8 L - Light blue ⋅ Bottle - 3.8 L - Darkblue ⋅ Bottle - 3.8 L - Light green ⋅ Bottle - 3.8 L - Dark green ⋅ Bottle - 3.8 L - Yellow ⋅ Bottle - 3.8 L - Orange ⋅ Bottle - 3.8 L - Pink ⋅ Bottle - 3.8 L - Purple ⋅ Bottle - 3.8 L - Red ⋅ Bottle - 3.8 L - Black ⋅ Bottle - 3.8 L - White	Item number :810.081.705 Max: Min: 1 Step: 1 Put on inquiry list Safety Data Sheet Container Open Download
