Magnetic particle testing

Penetrant Testing

Magnetic Particle Testing

Magnetic particle inspection is a simple but sensitive method for detecting irregularities in the surface of ferromagnetic materials with a relative permeability µr >100, e.g. steel, cast iron, cobalt, nickel. Inhomogeneities close to the surface can also be detected. The depth of detectable indications depends on the field used:

  • Alternating field max. 1 mm - 2 mm
  • DC field max. 2 mm - 3 mm


Surface crack inspection with the fluorescent magnetic particle testing - the crack indication is clearly visible under UV irradiation



Weld seam testing with the magnetic particle testing with coloured (here black) suspension and white background colour (black-white method)



During magnetisation of the ferromagnetic material, leak fluxes occur over material separations (e.g. cracks, pores). The detection can be performed

  • with a flux leakage probe
  • by the ferromagnetic particles in the magnetic powder suspension. These are attracted by the flux leakage and congregate above the material defect.

HELLING develops test facilities like

  • Hand yoke magnets
  • Cross yokes
  • Permanent magnets

to generate the magnetic field. These are manufactured at HELLING and can thus be optimally adapted to the customer's test conditions.


Hand-held yoke magnet for magnetisation, e.g. for non-destructive testing of a weld seam with magnetic particle testing



Test bodies and reference blocks according to international standards enable the detection media to be checked in accordance with the standards.


Reference blocks for magnetic particle testing to check the indication sensitivity of the detection media (magnetic particle suspension)



Furthermore, HELLING manufactures fully equipped testing systems for magnetic particle testing according to customer-specific requirements. This includes for example

  • Crack testing benches of different sizes
  • Railway wheelset testing facilities
  • Test tables for testing cylindrical, rectangular or irregularly shaped test specimens
  • Test benches for serial testing
  • Test benches for training purposes


Wheelset testing system ROD-A-MAT for combined testing of wheelset axle and wheelset wheels with fluorescent magnetic particle testing



Aerosol detection media

More information

Test equipment in spray cans is mainly used for quick and efficient testing in mobile applications.

The aerosol suspensions - both oil-based and water-based - are characterised by high sensitivity. They therefore allow the detection of the finest cracks.

Weld seam testing with black magnetic powder suspension BW 333 and white background colour NR 104 A spray


The low consumption and the handiness of the aerosol can make them ideal for use on construction sites or for quick testing of individual test parts.

Aerosol test equipment from Helling meets the requirements of

  • ASME Code Section V
  • ASTM E709
  • DIN EN ISO 9934
Filters Sort results
Reset Apply

BW 333

Water-based magnetic particle suspension

  • Black
  • Average grain size of the magnetic particles approx. 4 µm
  • High sensitivity
  • Contains wetting agent, defoamer and corrosion protection agent

Packaging:

Aerosol can - 400 mL
Item number :135.005.601
Max:
Min: 1
Step: 1
Put on inquiry list
Safety Data Sheet Spray

NRF 101

Oil-based magnetic particle suspension

  • Yellow-green fluorescent
  • Average grain size of the magnetic particles approx. 4 µm
  • Very high sensitivity
  • Very high flash point
  • Odour-neutral
  • Good corrosion protection properties
  • Application at -10°C to +50°C

Packaging:

Aerosol can - 400 mL
Canister - 1 L
Canister - 10 L
Item number :135.005.050
Max:
Min: 1
Step: 1
Put on inquiry list
Safety Data Sheet Spray
Safety Data Sheet Container

NRS 103

Oil-based magnetic particle suspension

  • Black
  • Average grain size of the magnetic particles approx. 4 µm
  • Very high sensitivity
  • Odour-neutral
  • Very high flash point
  • Good corrosion protection
  • Application at -10°C to +50°C

Packaging:

Aerosol can - 400 mL
Canister - 1 L
Canister - 10 L
Barrel - 200 L
Item number :135.005.070
Max:
Min: 1
Step: 1
Put on inquiry list
Safety Data Sheet Spray
Safety Data Sheet Container

NRS 103 S

Oil-based magnetic particle suspension

  • Black
  • Average grain size of the magnetic particles approx. 4 µm
  • Very high sensitivity
  • Odour-neutral
  • Good corrosion protection

Packaging:

Aerosol can - 400 mL
Item number :135.005.071
Max:
Min: 1
Step: 1
Put on inquiry list
Safety Data Sheet Spray

LY 2500

Water-based magnetic particle suspension

  • Yellow-green fluorescent
  • Average grain size of the magnetic particles approx. 4 µm
  • Very high sensitivity
  • Contains wetting agent, defoamer and corrosion protection agent

Packaging:

Aerosol can - 400 mL
Item number :135.005.611
Max:
Min: 1
Step: 1
Put on inquiry list
Safety Data Sheet Spray

Magnetpulver-Trocken-Spray fluoreszierend

Fluorescent magnetic powder without carrier liquid (dry spray)

  • Yellow-green fluorescent
  • Average grain size of the magnetic particles approx. 4 µm
  • for testing hot test object surfaces, e.g. weld seams
  • Applicable in temperature range from -10 °C to +230 °C

Packaging:

Aerosol can - 400 mL
Item number :135.005.065
Max:
Min: 1
Step: 1
Put on inquiry list
Safety Data Sheet Spray

Coloured detection media

More information

In addition to fluorescent detction media, the Helling GmbH product range includes a diverse range of coloured test products in the form of

  • Dry powders
  • Concentrates
  • Ready-to-use suspensions

The coloured magnetic powders are characterised by their

  • brilliant colour
  • defined particle size distribution
  • High purity

They produce easily recognisable indications on both dark and blank, bright surfaces.

The water-suspended and dry magnetic powder concentrates for the preparation of ready-to-use water-based suspensions already contain

  • Rust inhibitor
  • Wetting agent
  • Defoamer

They are therefore also used for testing corrosion-sensitive parts.

The use of concentrates contributes significantly to the reduction of transport and storage costs.

Ready-to-use oil-based suspensions are ideal for use on construction sites or for manual testing of individual test parts. The test oils to be used are colourless, odourless and skin-compatible. They have a low viscosity. As a result, the finished suspensions have only short dripping times.

The product range also includes ready-to-use suspensions in spray cans for fast, efficient testing in mobile applications.

Helling test products meet the requirements of

  • ASME Code Section V
  • ASTM E709
  • DIN EN ISO 9934
Filters Sort results
Reset Apply

BW 333

Colourblack

Average grain size

4 µm

Recommended concentration

3 g/l - 5 g/l

Sedimentation [(1 g/l) / 100 ml]

0,1

Delivery as

  • Pure magnetic powder
  • Liquid water-based concentrate
  • Dry concentrate
  • Ready-to-use oil-based suspension


1. Pure magnetic powder

  • 1 kg yields 200 L- 300 L suspension
  • For the production of water-based suspensions the Additiv BC502 is necessary!

2. Liquid water-based concentrate and dry concentrate

  • Liquid concentrate water-based 1 : 50
  • Dry concentrate 15 g : 1 L

The concentrates contain wetting agent, defoamer (non-silicone), corrosion protection agent. They are halogen-free.

Packaging:

Pure magnetic powder - 1 kg
Dry concentrate - 1.5 kg
Liquid concentrate (water-based) - 1 L
Suspension oil-based - 1 L
Suspension oil-based - 10 L
Item number :135.002.010
Max:
Min: 1
Step: 1
Put on inquiry list

Super Magna MEF-515 rot

Colourred fluorescent

Average grain size

10 µm

Recommended concentration

3 g/l - 5 g/l

Sedimentation [(1 g/l) / 100 ml]

0,1

Delivery as

  • Pure magnetic powder
  • Liquid water-based concentrate
  • Dry concentrate
  • Ready-to-use oil-based suspension


1. Pure magnetic powder

  • 1 kg yields approx. 300 L suspension
  • For the production of water-based suspensions the Additiv BC502 is necessary!

2. Liquid water-based concentrate and dry concentrate

  • water-based liquid concentrate 1 : 20
  • Dry concentrate 1.5 : 100

The concentrates contain wetting agent, defoamer (non-silicone), corrosion protection agent. They are halogen-free.

Packaging:

Pure magnetic powder - 1 kg
Dry concentrate - 1.5 kg
Liquid concentrate (water-based) - 1 L
Suspension oil-based - 1 L
Item number :135.001.011
Max:
Min: 1
Step: 1
Put on inquiry list

Super Magna TGL-11

Colourred-orange fluorescent
Average particle size35 µm
Recommended concentration5 g/l
Sedimentation [(1 g/l) / 100 ml]0.3

Delivery as

  • Pure magnetic powder
  • Dry concentrate


1. Pure magnetic powder

  • 1 kg yields 200 L suspension
  • For the preparation of water-based suspensions the Additiv BC502 is necessary

2. Dry concentrate

  • 15 g : 1 L
  • Contains wetting agents, defoamers (non-silicone), corrosion protection agent.
  • Halogen-free

Packaging:

Pure magnetic powder - 1 kg
Dry concentrate - 1.5 kg
Item number :135.001.510
Max:
Min: 1
Step: 1
Put on inquiry list
Safety Data Sheet Container

Super Magna TGL-12

Colourlight green fluorescent
Average particle size37 µm
Recommended concentration5 g/l
Sedimentation [(1 g/l) / 100 ml]0.3

Delivery as

  • Pure magnetic powder
  • Dry concentrate


1. Pure magnetic powder

  • 1 kg yields 200 L suspension
  • For the preparation of water-based suspensions the Additiv BC502 is necessary

2. Dry concentrate

  • 15 g : 1 L
  • Contains wetting agents, defoamers (non-silicone), corrosion protection agent.
  • Halogen-free

Packaging:

Pure magnetic powder - 1 kg
Dry concentrate - 1.5 kg
Item number :135.001.520
Max:
Min: 1
Step: 1
Put on inquiry list
Safety Data Sheet Container

Super Magna WD-105

Colourgray-white fluorescent
Average particle size37 µm
Recommended concentration5 g/l
Sedimentation [(1 g/l) / 100 ml]0,1

Delivery as

  • Pure magnetic powder
  • Dry concentrate


1. Pure magnetic powder

  • 1 kg yields 200 L suspension
  • For the preparation of water-based suspensions the Additiv BC502 is necessary

2. Dry concentrate

  • 15 g : 1 L
  • Contains wetting agents, defoamers (non-silicone), corrosion protection agent.
  • Halogen-free

Packaging:

Pure magnetic powder - 1 kg
Dry concentrate - 1.5 kg
Item number :135.001.530
Max:
Min: 1
Step: 1
Put on inquiry list

Super Magna WW 50

Colourgray-white fluorescent
Average particle size30 µm
Recommended concentration5 g/l
Sedimentation [(1 g/l) / 100 ml]0.25

Delivery as

  • Pure magnetic powder
  • Dry concentrate


1. Pure magnetic powder

  • 1 kg yields 200 L suspension
  • For the preparation of water-based suspensions the Additiv BC502 is necessary

2. Dry concentrate

  • 15 g : 1 L
  • Contains wetting agents, defoamers (non-silicone), corrosion protection agent.
  • Halogen-free

Packaging:

Pure magnetic powder - 1 kg
Dry concentrate - 1.5 kg
Item number :135.003.030
Max:
Min: 1
Step: 1
Put on inquiry list
Safety Data Sheet Container

Fluorescent detection media

More information

For the performance of magnetic particle testing under UV-A irradiation Helling GmbH offers a range of fluorescent detection products in the form of

  • Dry powders
  • Concentrates
  • Ready-to-use suspensions

The fluorescent magnetic powders are characterised by

  • High fluorescence coefficient
  • Defined particle size distribution
  • Hhigh purity

They produce indications that are easily recognisable under UV irradiation. The finest cracks are detectable.

The water-suspended and dry magnetic powder concentrates for the preparation of ready-to-use water-based suspensions already contain

  • Rust inhibitor
  • Wetting agent
  • Defoamer

They can also be used for test objects that are sensitive to corrosion.

The use of concentrates contributes significantly to the reduction of transport and storage costs.

Ready-to-use oil-based suspensions are ideal for use on construction sites or for manual testing of individual test parts. The test oils to be used are colourless, odourless and skin-compatible. They have a low viscosity. As a result, the finished suspensions have only short dripping times. Because the test oils do not exhibit any inherent fluorescence, high-contrast, brilliant crack indications are produced.

The product range also includes ready-to-use suspensions in spray cans for fast, efficient testing in mobile applications.

Helling test products meet the requirements of

  • ASME Code Section V
  • ASTM E709
  • DIN EN ISO 9934
Filters Sort results
Reset Apply

Super Magna LY 1500

Yellow-green fluorescent

Fluorescence coefficient 5.2 Cd/W
Average grain size14.5 µm
Recommended concentration0.6 - 1 g/l
Sedimentation [(1 g/l) / 100 ml]0.18

Delivery as

  • Pure magnetic powder
  • Liquid water-based concentrate
  • Dry concentrate
  • Ready-to-use oil-based suspension


1. Pure magnetic powder

  • 1 kg yields 1.500 L Suspension
  • For the preparation of water-based suspensions the Additiv BC502 is necessary

2. Liquid water-based concentrate and dry concentrate

  • Liquid water-based concentrate 1 : 40
  • Dry concentrate 10 g : 1 L

Contains wetting agent, defoamer (non-silicone), corrosion protection agent. Halogen-free.

Packaging:

Pure magnetic powder - 1 kg
Dry concentrate - 1 kg
Liquid concentrate (water-based) - 5 L
Suspension oil-based - 1 L
Suspension oil-based - 10 L
Item number :135.001.010
Max:
Min: 1
Step: 1
Put on inquiry list

Super Magna LY 2300

Yellow-green fluorescent

Fluorescence coefficient 3.4 Cd/W
Average particle size6 µm
Recommended concentration0,5 - 1 g/l
Sedimentation [(1 g/l) / 100 ml]0.2

Delivery as

  • Pure magnetic powder
  • Dry concentrate 1 : 100
  • Liquid water-based concentrate
  • Ready-to-use oil-based suspension


1. Pure magnetic powder

  • 1 kg yields 2.500 L suspension
  • For the preparation of water-based suspensions the Additiv BC502 is necessary

2. Liquid water-based concentrate

  • Liquid water-based concentrate 1 : 40 or 5 : 200

Contains wetting agent, defoamer (non-silicone), corrosion protection agent. Halogen-free.

Packaging:

Pure magnetic powder - 1 kg
Dry concentrate - 1 kg
Liquid concentrate (water-based) - 5 L
Suspension oil-based - 1 L
Suspension oil-based - 10 L
Item number :135.001.150
Max:
Min: 1
Step: 1
Put on inquiry list

Super Magna LY 2500

Yellow-green fluorescent

Fluorescence coefficient 2.8 Cd/W
Average particle size4 µm
Recommended concentration0.4 - 1 g/l
Sedimentation [(1 g/l) / 100 ml]0.25

Delivery as

  • Pure magnetic powder
  • Liquid water-based concentrate
  • Dry concentrate
  • Ready-to-use oil-based suspension


1. Pure magnetic powder

  • 1 kg yields 2.500 L suspension
  • For the preparation of water-based suspensions the Additiv BC502 is necessary

2. Liquid water-based concentrate

  • Liquid water-based concentrate 1 : 40
  • Dry concentrate 10 g : 1 L

Contains wetting agent, defoamer (non-silicone), corrosion protection agent. Halogen-free.

Packaging:

Pure magnetic powder - 1 kg
Dry concentrate - 1 kg
Liquid concentrate (water-based) - 1 L
Liquid concentrate (water-based) - 5 L
Concentrate oil-based - 10 L
Suspension oil-based - 1 L
Suspension oil-based - 10 L
Special High-Temp - 1 L
Special High-Temp - 10 L
Item number :135.001.040
Max:
Min: 1
Step: 1
Put on inquiry list

Super Magna CGY 4000

Yellow-green fluorescent

Fluorescence coefficient 11.3 Cd/W
Average particle size14 µm
Recommended concentration0.5 - 1.5 g/l
Sedimentation [(1 g/l) / 100 ml]0.23

Delivery as

  • Pure magnetic powder
  • Liquid water-based concentrate
  • Dry concentrate
  • Ready-to-use oil-based suspension


1. Pure magnetic powder

  • 1 kg yields 1.500 L Suspension
  • For the preparation of water-based suspensions the Additiv BC502 is necessary

2. Liquid water-based concentrate and dry concentrate

  • Liquid concentrate water-based 1 : 50
  • Dry concentrate 10 g : 1 L

Contains wetting agent, defoamer (non-silicone), corrosion protection agent. Halogen-free.

Packaging:

Pure magnetic powder - 1 kg
Dry concentrate - 1 kg
Liquid concentrate (water-based) - 1 L
Suspension oil-based - 1 L
Suspension oil-based - 10 L
Item number :135.001.180
Max:
Min: 1
Step: 1
Put on inquiry list

Background colour

Filters Sort results
Reset Apply

Untergrundfarbe weiß Nr. 104 A

  • White background colour
  • Without chlorinated hydrocarbon
  • Short drying time (approx. 1 min. at 20 °C)
  • Forms very homogeneous smooth background
  • Application of thin layers (max. 30 µm)

Packaging:

Aerosol can - 400 mL
Canister - 1 L
Canister - 10 L
Barrel - 200 L
Item number :135.006.020
Max:
Min: 1
Step: 1
Put on inquiry list
Safety Data Sheet Spray
Safety Data Sheet Container
Product information

Untergrundfarbe 104 A/S Spray

  • This white background colour can be painted over (no removal of the coating required, please check suitability beforehand)
  • Without chlorinated hydrocarbon
  • Short drying time (approx. 2 min. at 20 °C)
  • Forms very homogeneous, smooth background
  • Application of thin layers (max. 30 µm)

Packaging:

Aerosol can - 400 mL
Item number :135.006.021
Max:
Min: 1
Step: 1
Put on inquiry list
Safety Data Sheet Spray
Product information

Cleaner

Filters Sort results
Reset Apply

Cleaner No. 107

Cleaner to remove the white background colour

Packaging:

Aerosol can - 400 mL
Canister - 1 L
Canister - 10 L
Barrel - 200 L
Item number :135.006.050
Max:
Min: 1
Step: 1
Put on inquiry list
Safety Data Sheet Spray
Safety Data Sheet Container

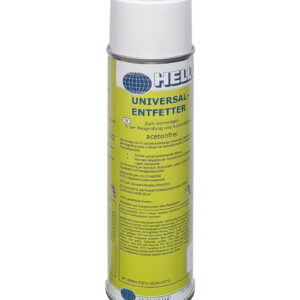

Universal-Entfetter

Universal cleaner for cleaning oil and grease contaminated metallic surfaces in surface crack testing.

Also suitable for cleaning disc and drum brakes (automotive industry).

Packaging:

Aerosol can - 750 mL
Canister - 1 L
Canister - 10 L
Barrel - 200 L
Item number :129.900.070
Max:
Min: 1
Step: 1
Put on inquiry list
Safety Data Sheet Spray
Safety Data Sheet Container
Product information

Test oils and conditioning agents

Filters Sort results
Reset Apply

Crack detection oil Typ 01500

Test oil for the preparation of suspensions in magnetic particle testing

  • Low viscosity
  • Regreasing
  • Ageing resistant
  • Odour-neutral
  • Colourless
  • Without own fluorescence

Packaging:

Canister - 10 L
Barrel - 200 L
Item number :135.007.050
Max:
Min: 1
Step: 1
Put on inquiry list
Safety Data Sheet Container

Crack detection oil Typ 4965

Test oil for the preparation of magnetic particle suspensions in magnetic particle testing

  • Low viscosity
  • Ageing resistant
  • Odour-neutral
  • Colourless
  • Without own fluorescence

Packaging:

Canister - 10 L
Canister - 25 L
Barrel - 200 L
Item number :135.007.020
Max:
Min: 1
Step: 1
Put on inquiry list
Safety Data Sheet Container

Additiv BC 502

Relaxation foam, antifoam agent and temporary corrosion inhibitor for preparation of water-based magnetic particle suspensions.

Additiv BC 502 is a compound of polyethylenglycolether, sodium palmitate, polysiloxane, phosphate, water and amine borate.

20 mL - 50 mL to 1 L water-based magnetic particle suspension

Packaging:

Canister - 1 L
Canister - 10 L
Canister - 25 L
Item number :135.007.080
Max:
Min: 1
Step: 1
Put on inquiry list
Safety Data Sheet Container

Antirust RS 602

Antirust for the production of water-based magnetic particle suspensions.

Free from nitrates, chlorides and halogens.

Also applicable for water-based coolants, cleaning liquids and metalworking fluids.

Dosage

20 mL to 1 L water or water-based magnetic particle suspension

Packaging:

Canister - 1 L
Canister - 10 L
Item number :135.008.081
Max:
Min: 1
Step: 1
Put on inquiry list
Safety Data Sheet Container

Test bodies and reference blocks

Filters Sort results
Reset Apply

Reference block 1

Reference block 1 according to EN ISO 9934-2 for demonstrating the indication sensitivity of magnetic powder suspensions.

The reference block consists of a disc with a bore hole and two types of natural cracks:

  • the rough cracks are grinding cracks,
  • the fine cracks are stress corrosion cracks.

The reference body is permanently magnetised with a central conductor through the hole.

The evaluation of magnetic particle suspensions is performed by visual or metrological comparison of the indications with a reference image which was produced under same testing conditions.


Technical data

Diameter50 mm
Height10 mm
Crack width2 µm - 10 µm

Scope of delivery

Reference block 1 according to DIN EN ISO 9934-2 (without certificate)

OPTIONAL

  • Reference block 1 with certificate
  • Control of reference block 1

Version:

Without certificate
With certificate
Control
Item number :134.002.000
Max:
Min: 1
Step: 1
Put on inquiry list

Reference block 2

Reference body 2 according to EN ISO 9934-2 for control and monitoring the indication sensitivity of magnetic powder suspensions.

Reference block 2 consists of two steel blocks precisely ground into each other and separated by an Al foil (15 µm). There is a permanent magnet on each of the two end faces. This generates a magnetic leakage flux above the interface, which becomes weaker with increasing distance from the magnet.

If the comparative body is rinsed with magnetic powder suspension, indications are formed which are more pronounced at the ends and decrease towards the center. The indication lengths are a measure of the suitability of the magnetic powder suspension being controlled. The sum of the lengths of the left and right displays is evaluated.


Technical data

Tangential field strength perpendicular to the artificial fault at the +4 / -4 markers+100 A/m / -100 A/m
Dimensions155 mm x 40 mm x 12 mm

Scope of delivery

Reference block 2 with certificate acc. to EN ISO 9934-2

OPTIONAL

  • Calibration of reference block 2

Version:

With certificate
Calibration of Reference Body 2
Item number :134.002.100
Max:
Min: 1
Step: 1
Put on inquiry list

MP Universal 900 reference block

Demonstration of the Proof of sensitivity of fluorescent detection media

.

The MP-Universal-900 reference block is provided with two types of natural cracks:

  • the rough cracks are grinding cracks
  • the fine cracks are stress corrosion cracks

The reference body is remanently magnetised. The detection medium is evaluated by visual or metrological comparison of the indications.

The reference block can be used for

  • Quality verification of different magnetic powders
  • Quality inspection of detection media used in the test bench
  • Monitoring of consistent dosing in automatic test facilities

Scope of delivery

  • MP-Universal-900 reference block with certificate
Item number :134.002.010
Max:
Min: 1
Step: 1
Put on inquiry list

Berthold Penetrameter

Proof of sufficient field strength and magnetisation direction A soft iron cylinder divided into four sectors separated by a gap of approx. 0.15 mm width, which - seen from above - reveals a cross slot. The top of the cylinder is covered with a thin, non-ferromagnetic metal foil.
Proof of field strength If the test body is placed on a magnetised test object, a part of the magnetic field lines flows through the soft iron cylinder. If the magnetisation is sufficient, one or the other gap of the cross-slot will form on the foil after rinsing with magnetic particle suspension.
Magnetisation direction The test body is slowly rotated around its vertical axis until the indication of one of the columns shows a clear maximum. The determined magnetisation direction is then perpendicular to the imaged gap.
  Technical data
Diameter 20 mm
Height 5 mm
Crack width 95 mm

Version:

Without certificate
With certificate
Control
Item number :134.003.000
Max:
Min: 1
Step: 1
Put on inquiry list

Magnetic field test body D 250

Octagonal, approx. 3 mm thick test body according to ASME for the

  • Localisation of magnetic fields
  • Detection of the magnetisation direction

The test body consists of eight soft iron segments connected by hard solder. The gaps between the segments filled with hard solder have a maximum width of 0.79 mm (1/3 inch). One side of the test body is copper plated. Viewed from above, the connecting seams form two crosses offset by 45°.

Manufactured in accordance with the following specifications:

  • MIL-STD-271 E (§ 4.3.2.5.5, Figure 8)
  • NAVSHIPS 250-1500-1 (§ 12.4.1.5, Figure 12 – 17)
  • ASME Section V (Art. 25, SA-275, Figure 8)


Technical data

Diameter27 mm
Height4 mm
Crack width100 mm
Weight42 g

Version:

Without certificate
With certificate
Item number :134.003.100
Max:
Min: 1
Step: 1
Put on inquiry list

Magnetic field indicator Burmah-Castrol

Thin, flexible test strips for magnetic field indication consisting of three different layers, each 0.05 mm thick. The middle layer consists of a nickel-iron alloy with high relative permeability. The outer layers consist of a non-magnetisable material.

The middle layer has three slots running parallel to the long side, 42 mm long and evenly distributed across the width.

The Burmah-Castrol magnetic field indicator is available in 2 versions: Type I and Type II.

Type I differs from Type II as follows:

  • Slot widths approximately 2 x slot width of type II
  • Indications already at low field strengths due to the larger slot widths
  • Type I for general applications
  • Type II for the aviation industry

Version:

Burmah-Castrol Type I
Burmah-Castrol Type II
Item number :134.002.110
Max:
Min: 1
Step: 1
Put on inquiry list

Ketos Tool Steel Ring

The Steel Ring is available in the version according to

  • ASTM E1444/E1444M-16 - Ketos Tool Steel Ring
  • SAE AS5282A - Tool Steel Ring

Proof of sensitivity of detection media systems (dry, wet, fluorescent and non-fluorescent) when using the magnetisation technique with a central conductor.

While a direct current (half-wave or full-wave rectification) flows through the central conductor (length >406.4 mm, Ø 25.4 - 31.75 mm), flux leakages are generated above the holes. The field strength decreases with increasing distance to the ring edge. When magnetic particle suspension is applied to the ring, the magnetic particles accumulate at the edge of the ring above the holes and form indication lines. The relative sensitivity of the detection media system is demonstrated by the number of indications.


Technical data

MaterialAISI 01 (tempered round steel)
Hardness90 HRB - 95 HRB
Diameter of central bore31.75 mm
Diameter of the holes1.78 mm

Central conductor

Length406.4 mm
Diameter25.4 mm - 31.75 mm

Version:

According to ASTM E 1444-01
According to SAE AS5282 (Aviation / Aerospace)
Item number :134.004.000
Max:
Min: 1
Step: 1
Put on inquiry list

Miniature QQI-Model KSC4-230

Quantitative Quality Indicator QQI

Magnetic field indicator with artificial defects according to

  • SAE AS5371
  • ASTM E1444/1444M-12
  • ASME V Art. 7-764.1.2


Miniature magnetic field indicator, similar to KSC-230.

The four circular indications can be cut apart for individual use.

Technical data

Number of indications4
Circle diameter¼ Inch
Slot length¼ Inch
Crack depth0.006 Inch (15 µm; 30% of sheet thickness)
Item number :134.002.403
Max:
Min: 1
Step: 1
Put on inquiry list

Standard QQI-Model KSC-230

Quantitative Quality Indicator QQI

Magnetic field indicator with artificial defects according to

  • SAE AS5371
  • ASTM E1444/1444M-12
  • ASME V Art. 7-764.1.2


Standard version

Circular and crossed bar defects configuration suitable for longitudinal and circular fields

Technical data

Number of indications1
Diameter of circle½ Inch
Slot length¼ Inch
Depth of crack0.006 Inch (15 µm; 30% of metal sheet thickness)
Item number :134.002.401
Max:
Min: 1
Step: 1
Put on inquiry list

Variable depth QQI-Model KSCT-234

Quantitative Quality Indicator QQI

Magnetic field indicator with artificial defects according to

  • SAE AS5371
  • ASTM E1444/1444M-12
  • ASME V Art. 7-764.1.2


3 different circle diameters with different crack depths

Technical data

Number of indications3
Diameter of circle1/2 Inch
3/8 Inch
1/4 Inch
Depth of cracks0,004 Inch (10 µm; 20% of the sheet thickness)
0,006 Inch (15 µm; 30% of the sheet thickness)
0,008 Inch (20 µm; 40% of the sheet thickness)
Item number :134.002.402
Max:
Min: 1
Step: 1
Put on inquiry list

Standard QQI-Model KSC-430

Quantitative Quality Indicator QQI

Standard magnetic field indicator with artificial defects according to

  • SAE AS5371
  • ASTM E1444/1444M-12
  • ASME V Art. 7-764.1.2


Standard design with circular and cross-shaped cracks.

Suitable for longitudinal and circular fields

Technical data

Crack depth 0.004 Inch (30% of sheet thickness)
Item number :134.002.404
Max:
Min: 1
Step: 1
Put on inquiry list

QQI-Model KSC-4-234

Quantitative Quality Indicator QQI

Magnetic field indicator with artificial defects according to

  • SAE AS5371
  • ASTM E1444/1444M-12
  • ASME V Art. 7-764.1.2


3 circular defects with different diameters and crack depths.

Technical data

Number of indications3, concentric, circular cracks
Crack depth20% of the sheet thickness
30% of the sheet thickness
40% of the sheet thickness
Item number :134.002.405
Max:
Min: 1
Step: 1
Put on inquiry list

Lifting force test body TB-2

Test bodies for controlling and calibrating the lifting force of AC, DC and permanent magnets.

The test body complies with EN ISO 9934-3.


Scope of delivery

  • Lifting force test body TB-2
  • Certificate
Item number :134.002.030
Max:
Min: 1
Step: 1
Put on inquiry list

Lifting force test body TB-10

Test bodies for controlling and calibrating the lifting force of AC, DC and permanent magnets:



The test body is stamped. This ensures traceability to the NIST standard.

The test body complies with the following specifications:

  • ASME Section V, Article 7
  • ASTM E709
  • ASTM E1444
  • MIL-STD-271E / -271F
  • NAVSEA-TB-T9074-AS-GIBO 10/271


Scope of delivery

  • Lifting force test body TB-2
  • Certificate

Version:

1 set = 1 piece (10 lb, approx. 4.5 kg)
S-4: 1 set = 4 pieces (40 lb, approx. 18.2 kg)
S-5: 1 set = 5 pieces (50 lb, approx. 22.7 kg)
Item number :134.002.017
Max:
Min: 1
Step: 1
Put on inquiry list

Lifting force test body TB-10-SP

Controlling and calibrating the lifting force of AC yoke magnets.

  • The lifting force test body is stamped. This ensures traceability to the NIST standard.
  • On the back, the test body is provided with artificial indicators.


The test body complies with the following specifications:

  • ASME Section V, Article 7
  • ASTM E709
  • ASTM E1444
  • MIL-STD-271E / -271F
  • NAVSEA-TB-T9074-AS-GIBO 10/271


Weight: 10 lb (4.5369 kg)

Item number :134.002.018
Max:
Min: 1
Step: 1
Put on inquiry list

Test kit and accessories

Filters Sort results
Reset Apply

HELLING MT test kit

The HELLING MT test kit has been specially composed for

  • Training centres
  • Technical vocational schools
  • Universities

The test case is further compiled for NDT test personnel and inspectors.

The HELLING MT test kit contains the test equipment, detection media, measuring and auxiliary means necessary for carrying out magnetic particle testing in accordance with the standards.

Please refer to the product flyer for the content.

Item number :131.500.100
Max:
Min: 1
Step: 1
Put on inquiry list
Product information

Centrifugal tube according to ASTM E709-08

The centrifugal tube according to ASTM E709-08 is used to determine the magnetic particle concentration in magnetic particle suspensions.

After a settling time of

  • 30 min. for water-based suspensions
  • 60 min. for oil-based suspensions

a prescribed number of graduation marks must be reached.

According to ASTM E1444, the settling volume must reach the following values for a suspension volume of 100 mL:

  • fluorescent magnetic particle suspensions 0.1 mL - 0.4 mL
  • non-fluorescent suspensions 1,2 mL - 2,4 mL

Version:

For fluorescent suspensions
For non-fluorescent suspensions
For non- and fluorescent suspensions
Mounting for centrifugal tube
Item number :134.005.002
Max:
Min: 1
Step: 1
Put on inquiry list

Documentation sheets

The documentation sheet is characterised by

  • High flexibility
  • Good fixability
  • Good suitability for curved surfaces
  • Formats 13 cm x 18 cm and 13 cm x 36 cm
  • Colours black, white and transparent

Scope of delivery

  • 1 PU = 10 sheets

Version:

13x18 cm Black
13x36 cm Black
13x18 cm White
13x36 cm White
13x18 cm Transparent
13x36 cm Transparent
Item number :134.007.311
Max:
Min: 1
Step: 1
Put on inquiry list

Hand yoke magnets

More information

Series HANSA is the new generation of hand yoke magnets, which is characterised by several advantages over the previous series: the yokes are

  • of lower weight
  • handy
  • more powerful

An important ergonomic feature of the HANSA series is the narrow handle bar, which allows fatigue-free work - even for small hands - over a long period of time.

The HANSA series consists of the hand yoke magnets

  • UM-8
  • UM-9
  • UM-10
  • UM-15

All hand yoke magnets are manufactured at Helling GmbH.

The UM-8, UM-9 and UM-10 hand yoke magnets differ in the following ways

  • the dimensions (mean pole spacing and leg length)
  • the weight
  • the pull-off force

The pole spacing can be changed by attaching attachment poles. The lower leg of the 45° attachment pole can be swiveled inward or outward by 45°, for example. This increases or decreases the pole distance. The 45° bevel of the contact surface of the attachment pole allows optimum adaptation to the respective test object geometry.

Flexible pole 45°



For use in harsh conditions, the hand magnets can be equipped with protective poles.

Hand yoke magnet UM-15 is equipped with three-link movable legs as standard. These can be used to set pole distances (center/center) from 95 mm to 245 mm.

In relation to

  • Lifting force
  • Tangential field strength

all hand yoke magnets of the HANSA series meet the requirements of the current standards and regulations such as

  • EN ISO 9934-3
  • ASTM E709
  • ASME Code Section V

The hand yoke magnets of the HANSA series are fully potted and thus meet protection class IP 65.

They are available in the following mains voltage versions:

  • 230 V
  • 110 V
  • 42 V (with transformer)

With the exception of UM 8 (60 s, 30% ED), they can be used with a maximum on-time of 150 s and a maximum duty cycle (ED) of 50%.

The power cable can be unscrewed. This prevents malfunctions and costly repairs due to kinked cables directly at the cable entry.

Greater mobility and freedom of movement are provided to the test personnel by the battery-powered and thus network-independent DC hand-held yoke magnets of the HANSA-DC series.

Here, too, a low weight, the narrow handle bar ensure fatigue-free work. The surface of the devices is slightly roughened, which prevents slipping in the hand.

The magnets are powered by a compact NiMH battery of high capacity and long operating time. The battery charge status is indicated by the LED operation indicator integrated in the yoke housing.

The HANSA-DC hand yoke magnets meet the requirements of

  • ASTM E709-21
  • ASTM E1444/E1444M-21
  • 42 V (with transformer)

The pull-off force is >27 kg / >265 N. Thus, the requirement of ASTM E 709-21 (at least 23.0 kg / 225 N) is fulfilled.

OPTIONAL test reports are available for all HANSA manual yoke magnets.

Filters Sort results
Reset Apply

Safety transformer

Mobile safety transformer according to VDE 0570 and EN 61558 for hand yoke magnets.


Technical data

Input voltage230 V
Output voltage42 V
Frequency50 Hz - 60 Hz
Power500 VA
Current current primary2.4 A
Current decrease secondary11.9 A
Supply cable2 m cable with 2-pin Schuko contour plug
OutputCEE socket
Weight11 kg
Dimensions430 mm x 150 mm x 230 mm
Protection classIP44

Version:

For UM 8 / UM 9 / UM 15 (HANSA-42)
For UM 10 (HANSA-42)
Item number :131.009.050
Max:
Min: 1
Step: 1
Put on inquiry list

Hand yoke magnet UM 8 / HANSA-230

Technical data

Pole distance170 mm
Pole cross section25 mm x 25 mm
External dimension265 mm x 163 mm x 49 mm
Tangential field strength30 A/cm
Lifting force130 N
Voltage230 V
Operating current2 A
Power-on time50 %
Weight2.9 kg
Cable length5 m
Protection classIP65

Version:

Hand yoke magnet
Spare cable - length 5 m
Spare cable - length 10 m
Test report
Item number :131.002.020
Max:
Min: 1
Step: 1
Put on inquiry list

Hand yoke magnet UM 8 / HANSA-42

Technical data

Pole distance170 mm
Pole cross section25 mm x 25 mm
External dimension265 mm x 163 mm x 49 mm
Tangential field strength30 A/cm
Lifting force>130 N
Voltage42 V
Operating current9 A
Power-on time50 %
Weight2.9 kg
Cable length5 m
Protection classIP65

Necessary accessories:

Art. no. 131.009.050 - Safety transformer 230/42 V

Version:

Hand yoke magnet
Safety transformer
Spare cable - length 10 m
Test report
Item number :131.002.030
Max:
Min: 1
Step: 1
Put on inquiry list

Hand yoke magnet UM 9 / HANSA-230

Technical data

Pole distance170 mm
Pole cross section25 mm x 25 mm
External dimension250 mm x 135 mm x 49 mm
Tangential field strength30 A/cm
Lifting force>130 N
Voltage230 V
Operating current2 A
Power-on time50 %
Weight2.9 kg
Cable length5 m
Protection classIP65

OPTIONAL

  • Cable exit on top (see fig.)

Version:

Hand yoke magnet
Spare cable - length 5 m
Spare cable - length 10 m
Test report
Cable exit top
Item number :131.002.024
Max:
Min: 1
Step: 1
Put on inquiry list
Placeholder

Hand yoke magnet UM 9 / HANSA-42

Technical data

Pole distance170 mm
Pole cross section25 mm x 25 mm
External dimension250 mm x 135 mm x 49 mm
Tangential field strength32 A/cm
Lifting force>130 N
Voltage42 V
Operating current8.5 A
Power-on time50 %
Weight2.9 kg
Cable length5 m
Protection classIP65

Necessary accessories:

Art. no. 131.009.050 - Safety transformer 230/42 V

OPTIONAL

  • Cable exit on top (see fig.)

Version:

Hand yoke magnet
Safety transformer
Spare cable - length 10 m
Test report
Cable exit top
Item number :131.002.025
Max:
Min: 1
Step: 1
Put on inquiry list

Hand yoke magnet UM 9 / HANSA-DC

Technical data

Pole distance170 mm
Pole cross section25 mm x 25 mm
External dimension250 mm x 135 mm x 49 mm
Lifting force>225 N
Voltage6 V
Operating current1 A
Continuous operation4 h
Weight2.9 kg
Protection classIP65
Lifting force according to ASTM E1444/E1444M-16>225 N

Version:

Without status display LED red/green
With status display LED red/green
Certificate
Item number :131.002.127
Max:
Min: 1
Step: 1
Put on inquiry list

Hand yoke magnet UM 10 / HANSA-230

Technical data

Pole distance135 mm
Pole cross section25 mm x 25 mm
External dimension210 mm x 110 mm x 49 mm
Tangential field strength30 A/cm
Lifting force>90 N
Voltage230 V
Operating current0.8 A
Power-on time50 %
Weight2.2 kg
Cable length5 m
Protection classIP65

OPTIONAL

  • Cable exit (see fig.)

Version:

Hand yoke magnet
Spare cable - length 5 m
Spare cable - length 10 m
Test report
Cable exit top
Item number :131.002.026
Max: 1
Min: 1
Step: 1
Put on inquiry list
Placeholder

Hand yoke magnet UM 10 / HANSA-42

Technical data

Pole distance135 mm
Pole cross section25 mm x 25 mm
External dimension210 mm x 110 mm x 49 mm
Tangential field strength30 A/cm
Lifting force>90 N
Voltage42 V
Operating current4.4 A
Power-on time50 %
Weight2.2 kg
Cable length5 m
Protection classIP65

Necessary accessories:

Art. no. 131.009.056 - Safety transformer 230/42 V

OPTIONAL

  • Cable exit (see fig.)

Version:

Hand yoke magnet
Safety transformer
Spare cable - length 10 m
Test report
Cable exit top
Item number :131.002.027
Max:
Min: 1
Step: 1
Put on inquiry list
